Model NO.A
Color:Various
Material:Galvanized Sheet
Type:Steel Coils
Standard:AISI, ASTM, BS, DIN, GB, JIS
Surface Treatment:Galvanized/Galvalume/Color
Packing:Export Standard
Place of Origin:Zhejiang, China
|
Model |
Coil (mm) |
Thick- ness |
I (cm4/m) |
W± (cm3/m) |
Usage |
|
A |
1200 |
0.4 |
9.9 |
6.98 |
Wall & ROOF Panel |
|
0.6 |
15.67 |
10.43 |
|||
|
0.8 |
18.92 |
13.58 |

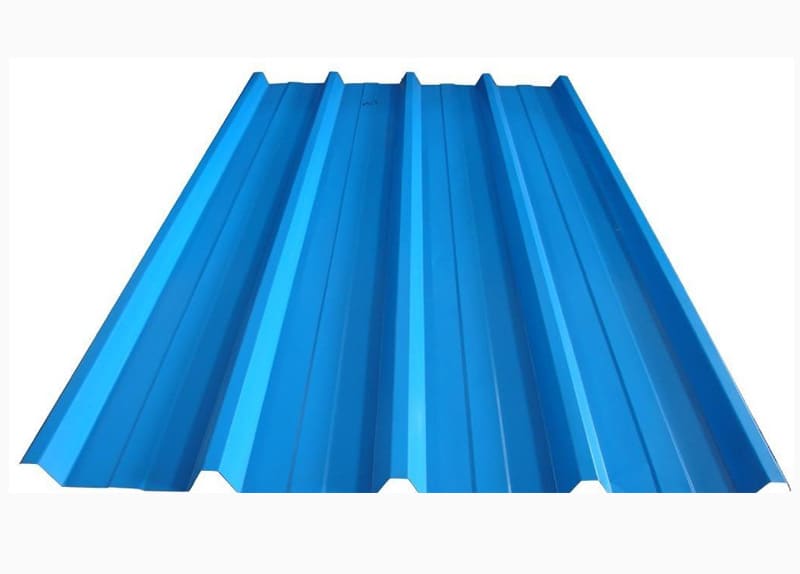

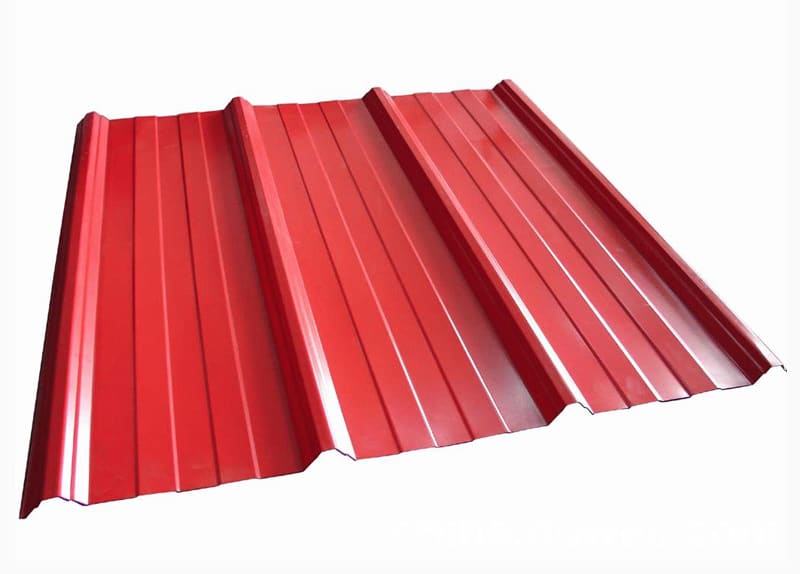

Corrugated PPGI sheets have a wavy pattern, which provides added strength and rigidity to the sheet. The corrugated pattern also helps to channel water away from the sheet, making it more resistant to water damage. The pre-coating provides added durability, resistance to corrosion, and a wide range of color options.Corrugated PPGI (Prepainted Galvanized Steel) sheets are steel sheets that have been coated with paint or other materials before they are used in construction. The thickness of these sheets is specified as 0.4-0.6mm, which means that the thickness of the steel sheets can vary within this range. This thickness range is considered to be a standard size for Corrugated PPGI sheets which are commonly used for the construction of roofs, walls and other exterior surfaces.
With high anti-rust performance, they are popular used in co...
PPGI / PPGL COIL full name is prepainted galvanized / galval...
Port:Zhejiang,China Advantages of Our Prepainted Galvanized ...
APPLICATION OF PPGI Construction:Outside:Workshop, agricultu...
APPLICATION OF PPGI 1) Buildings and constructions: roofing,...
Packing & Delivery Remarks;1. Trade term; EXW, FOB, CFR,...
It is well known that the characteristics of color coated steel plates cause oxide scales, rust layers, and other contaminants to form on the surface of steel plates during use. In addition, it should...
Generally, building color coated plates are based on hot-dip galvanized steel plates and hot-dip aluminized zinc steel plates, which are mainly processed into corrugated plates or sandwich panels that...
In the process of using color coated board products, be sure to keep away from fire sources. If the color coated board is a general foam color coated board, do not set up a kitchen in the color coated...
As long as you pay attention to these points when using color coated products, you can reduce the possibility of fire. Don't ignore some details. Fire is likely to be caused by details. I believe that...
The color coated roll has light weight, beautiful appearance and good corrosion resistance, and can be directly processed. The color is generally divided into gray white, sea blue and brick red. It is...
Electrochemical and physical mechanical tests can be carried out on galvanized coils to obtain electrochemical behavior and physical performance data; For example: adhesion, corrosion resistance, coat...
