PRINTED PPGI COIL WRINKLE PATTERN

Wooden / Marble / Flower designs are beautiful for decoration and making metal box and furniture, etc.

Details

PRODUCT INDEX

BASE MATERIAL	HDGI HDGL
THICKNESS	0.23-0.8mm
WIDTH	914-1250mm
INTERNAL DIAMETER	508mm
WEIGHT	3-7TON
PAINT	PE/PVDF
STRUCTURE	TOP 2/BACK 1

PERFORMANCE INDICATORS

TEST ITEM	TOP	BACK
PAINT THICKNESS	>5+18	5-7
GLOSSY	high 70±5/middle50土5/low30±5	35±5
COATING HARDNESS	≥H	≥H
T BELT	≤3T	≤4T
IMPACT RESISTANCE	≥9J	≥6J
DISSOLVENT RESISTANCE	≥100	≥50
SALT SPAY TEST	≥720hr
ACID RESISTANCE	SOAKED IN 5% HCL SOLUTION FOR 300HR WHITHOUT BLISTERING, COLOR FADING AND COATING PEEL-OFF
ALKALI RESISTANCE	SOAKED IN 5% NAOH SOLUTION FOR 300HR WHITHOUT BLISTERING, COLOR FADING AND COATING PEEL-OFF

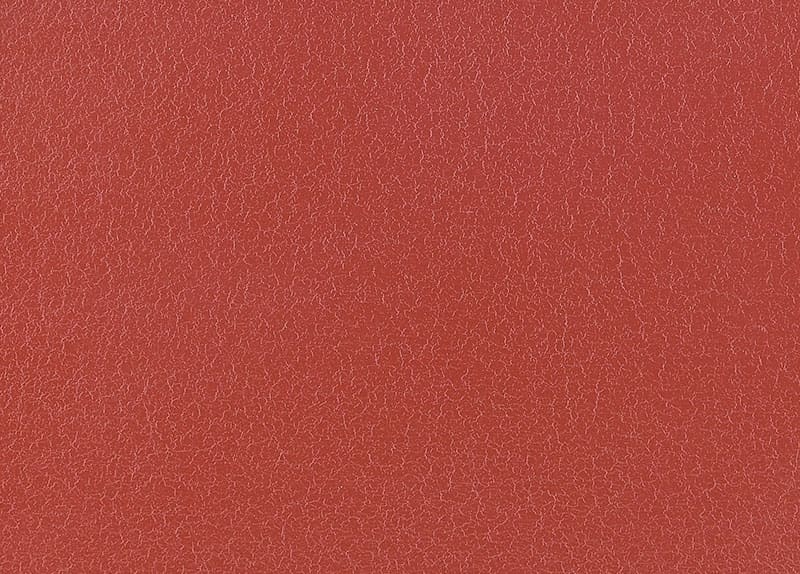

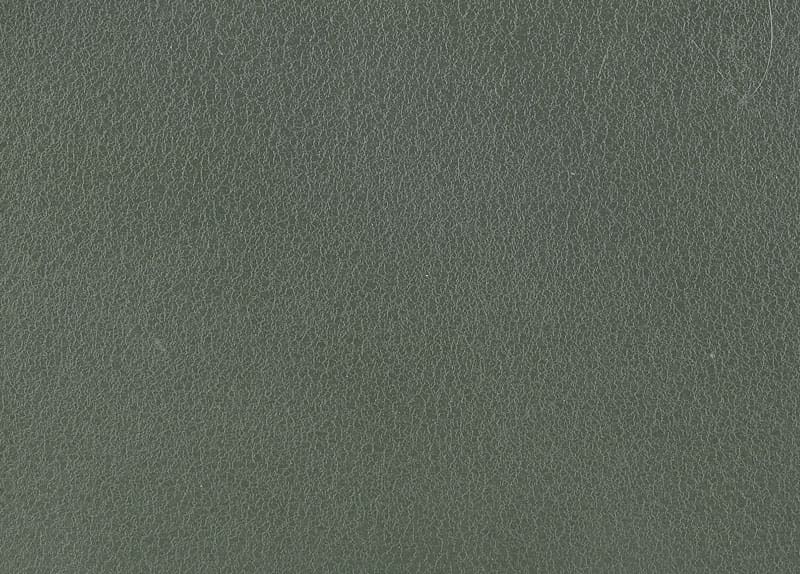

PRINTED COIL WRINKLE PATTERN refers to a type of coil that has been printed with a wrinkle pattern before it is used in construction or other applications. These types of coils are commonly used for decorative purposes, such as for building facades, partitions, and ceilings. The wrinkle pattern is a textured finish that is created by applying a specific coating on the surface of the coil that causes the steel to wrinkle or form a pattern of creases.The wrinkle pattern can be created by using a special type of paint or coating that contains a hardening agent that causes the steel to wrinkle when it is applied. The coating can also be applied with a specific technique that creates a uniform or random pattern of wrinkles. The wrinkle pattern creates a unique and dynamic look, which can be used to add visual interest to a building's exterior or interior.
